Product Description

Custom self adhesive silicone sponge strips are high‑performance closed‑cell silicone foam sealing components manufactured through professional foaming, vulcanization, and precision cutting processes, with strong pressure‑sensitive adhesive backing applied in an automated coating line. Made from premium food‑grade or industrial‑grade silicone raw materials, these strips feature uniform cell structure, excellent softness, high resilience, temperature resistance, aging resistance, and tear resistance. As a professional silicone sponge gaskets manufacturer, we provide fully customized solutions for width, thickness, length, color, density, and adhesive strength. Custom self adhesive silicone sponge strips are widely used for reliable sealing, shock absorption, anti‑collision, sound insulation, dustproofing, and waterproofing in industrial equipment, mechanical assemblies, electrical cabinets, home appliances, and furniture, delivering long‑term stable performance in harsh environments with easy peel‑and‑stick installation.

Techical Data

Product name : Custom self adhesive silicone sponge strips

Model No.: ES-SA002

Material: High‑quality closed‑cell silicone sponge

Regular Sizes: 2×10mm, 2×15mm, 2×20mm; full custom sizes available

Color: Standard white; customizable upon request

Customization :Size & color &density &Elongation& Physical and chemical property etc.

Temperature Resistance:-40°C to +220°C

Hardness:0.3–0.9 g/cm³

Tensile Strength:≥0.6 MPa

Elongation at Break:≥150%

Compression Set:≤15% (22h at 70°C)

Cell Structure:Uniform closed‑cell foam

Adhesive:High‑viscosity acrylic pressure‑sensitive adhesive

Product property :Aging Resistance:Excellent UV, ozone & weather resistance

Chemical Resistance：Good corrosion resistance to acids, alkalis & oils

Compliance：RoHS, FDA‑grade optional

MOQ :2000Meter

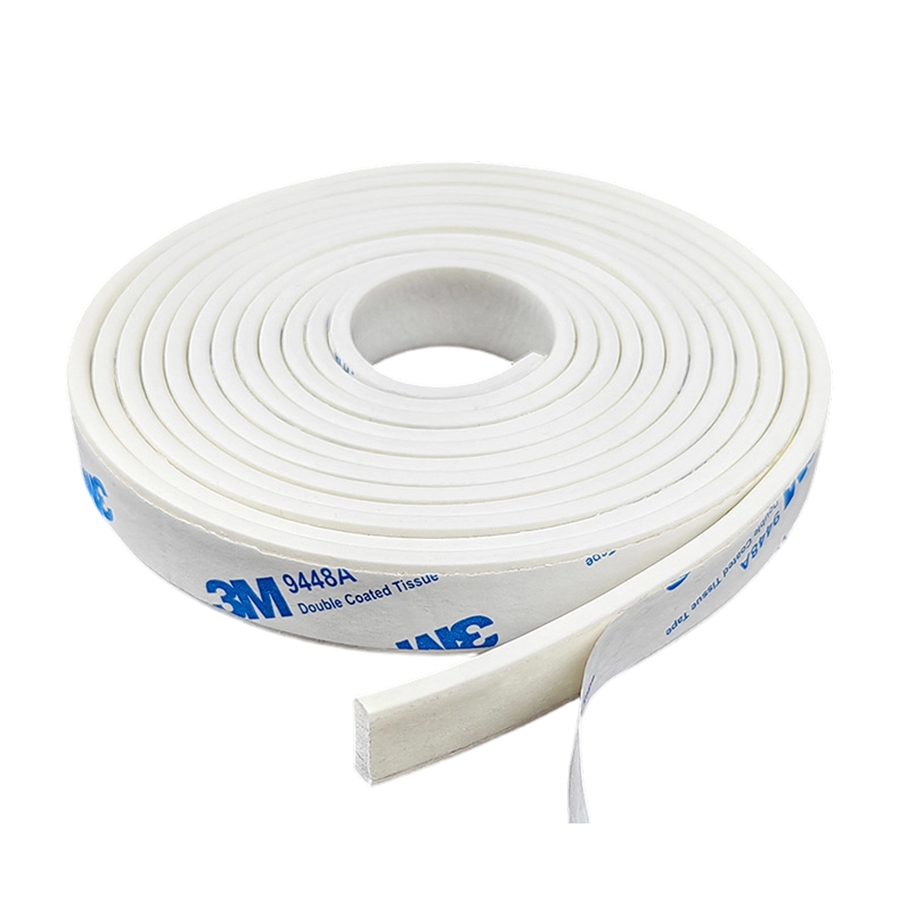

Packing :200 meters per roll; customizable packaging

Manufacturing & Production Process

1,Raw Material PreparationHigh‑purity silicone rubber, foaming agent, crosslinking agent, and anti‑aging additives are precisely mixed to ensure stable material performance.

2,High‑temperature Foaming & VulcanizationContinuous siliocne extrusion production line with precise temperature control forms uniform closed‑cell silicone sponge strips with consistent density and elasticity.

3, Primer Coating & Lamination of silicone sponge strips with double side tapes , Load both silicone sponge strips and double side taps on the  self adhesive silicone sponge strip laminating and cutting machine, primer coat the silicone sponge strip surfaces to activate the surface for good adhesion with double side tapes .the laminating machine will then laminate silicone sponge strips with double side tape together with good adhesion and without dislocation

Below youtube video of working process .

4,Precision Cutting to length Automatic cutting laminated silicone sponge strips with double side tapes to length by the self adhesive silicone sponge strip laminating and cutting machine

5. Quality Inspection & PackagingFull inspection of appearance, size, adhesion, resilience, and performance before rolling and packaging.

Key Product Advantages

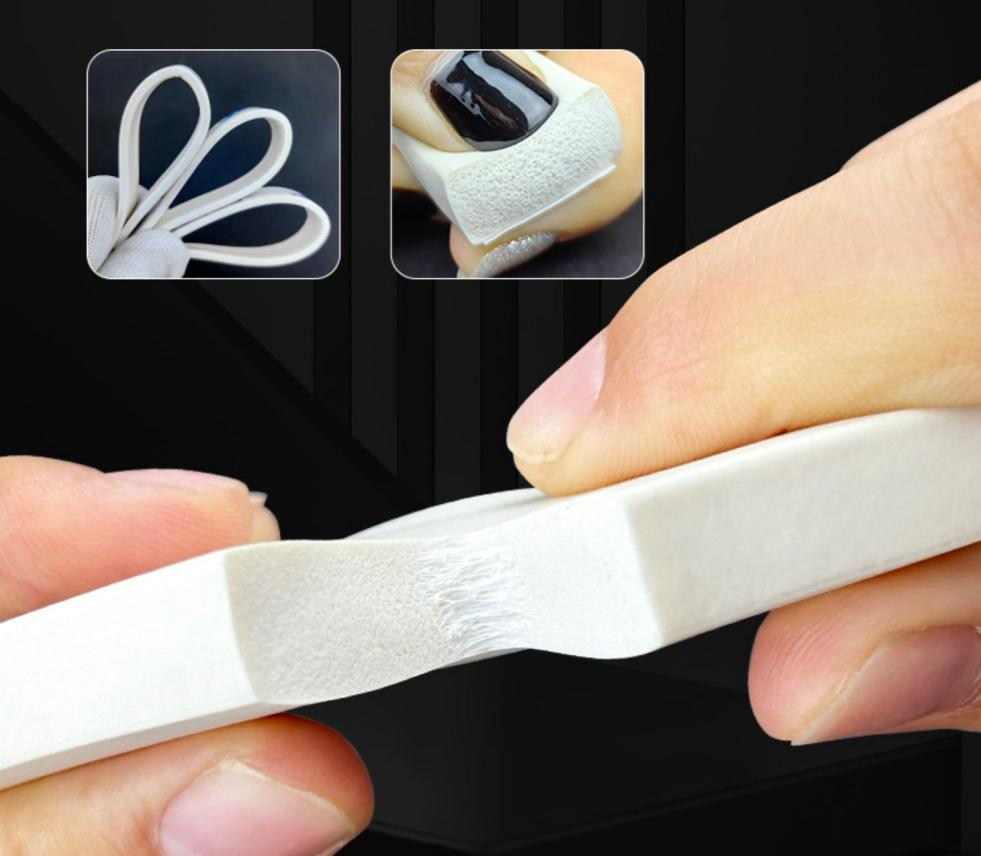

Excellent Tear & Wear Resistance

Our products provide stable mechanical performance and long service life under frequent compression and stretching.

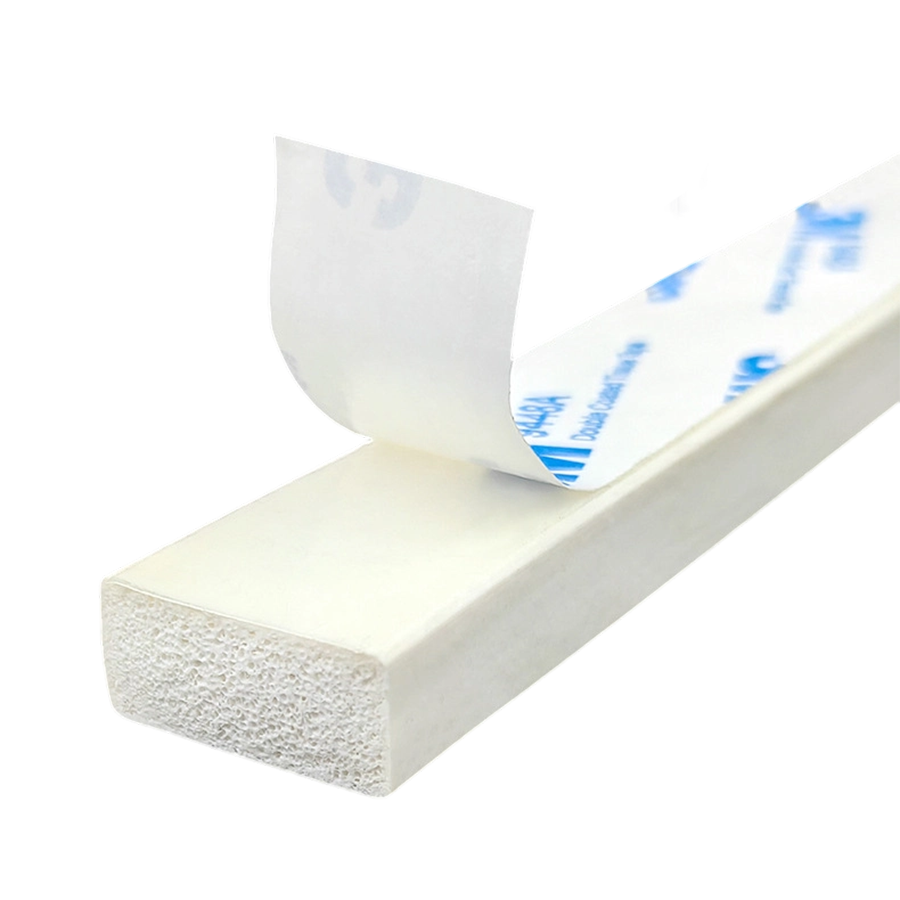

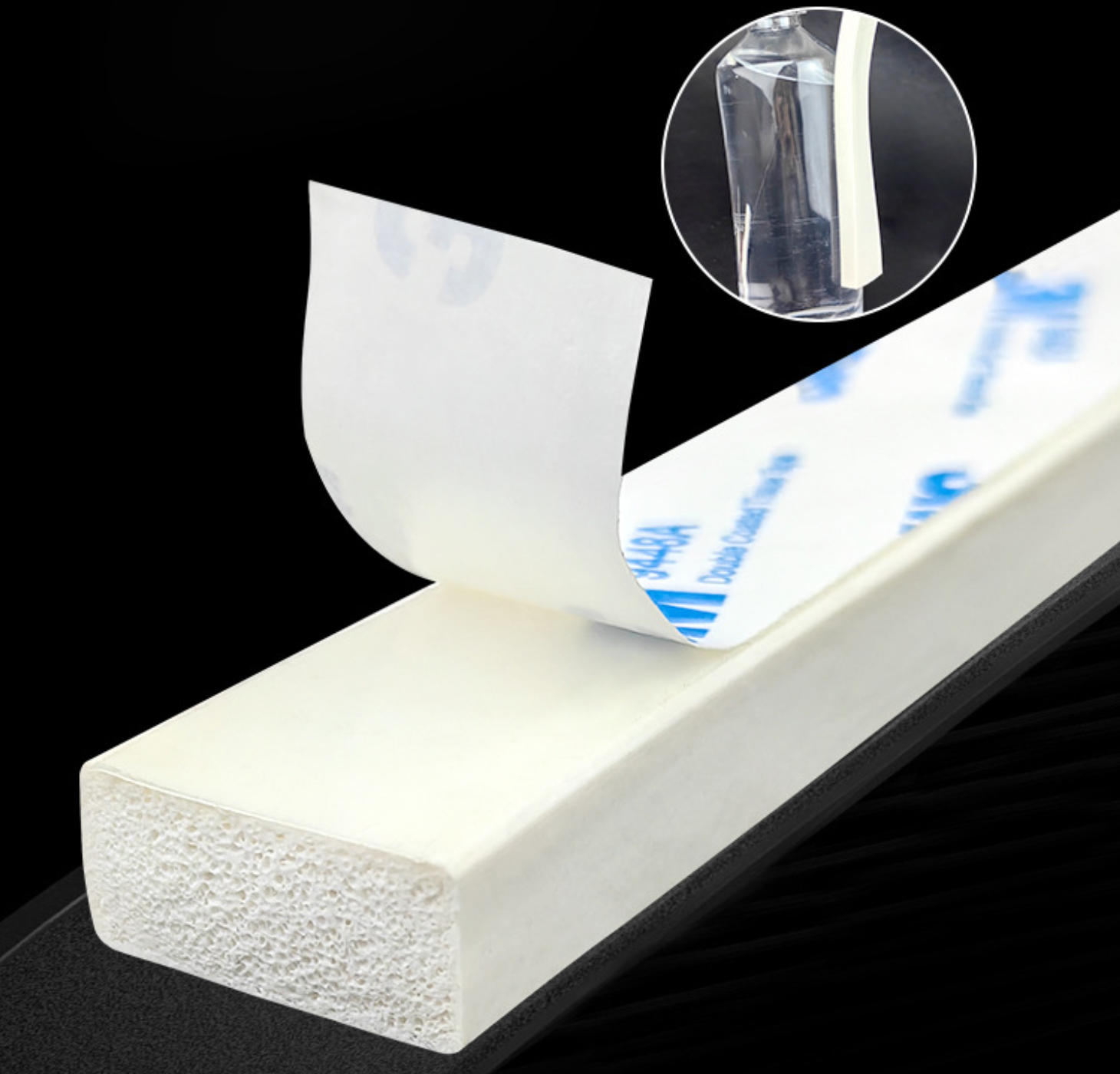

Strong Adhesion & Easy Installation

High‑strength backing adhesive ensures firm bonding on most surfaces; peel‑and‑stick design supports fast, tool‑free installation.

Superior High & Low Temperature Stability

Remains flexible and non‑deforming in extreme temperatures, suitable for indoor and outdoor harsh environments.

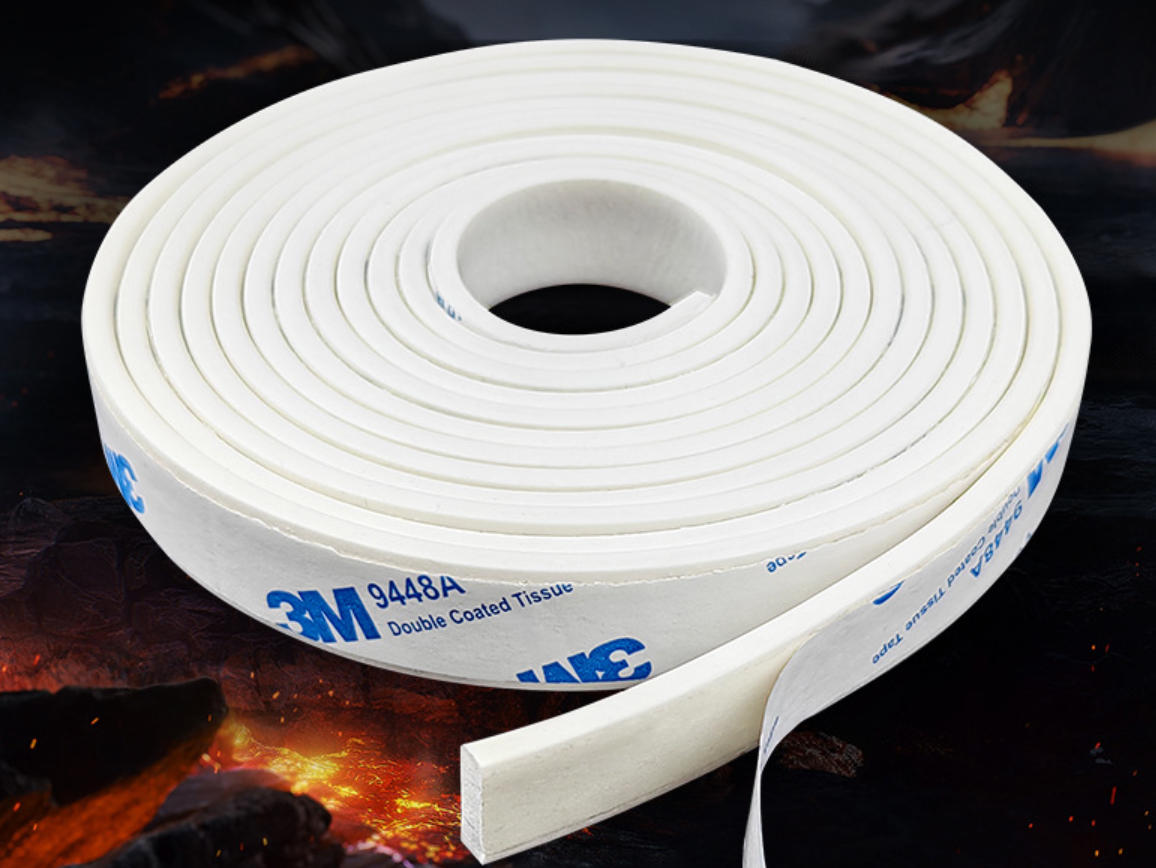

Outstanding Aging & Weather Resistance

Resistant to UV, ozone, and oxidation, maintaining elasticity and sealing performance for years.

Full Customization Capability

We support custom size, color, density, hardness, and adhesive type to meet different application requirements.

Main Applications

Industrial equipment, electrical cabinets, and distribution boxes for sealing and dustproofing

Mechanical equipment, automation lines, and automotive parts for shock absorption and noise reduction

Furniture, doors, windows, and home appliances for anti‑collision and sound insulation

Electronic devices, automotive interiors, and packaging gaskets for cushioning and sealing

About Us

We are a professional manufacturer focused on silicone sponge gaskets and custom self adhesive silicone sponge strips. With mature production technology, complete processing equipment, and strict quality control, we provide stable quality, on‑time delivery, and professional customization services for global customers.
