Medical Grade Silicone O Ring Gaskets

Medical Grade Silicone O Ring Gaskets for Reliable Sealing Applications

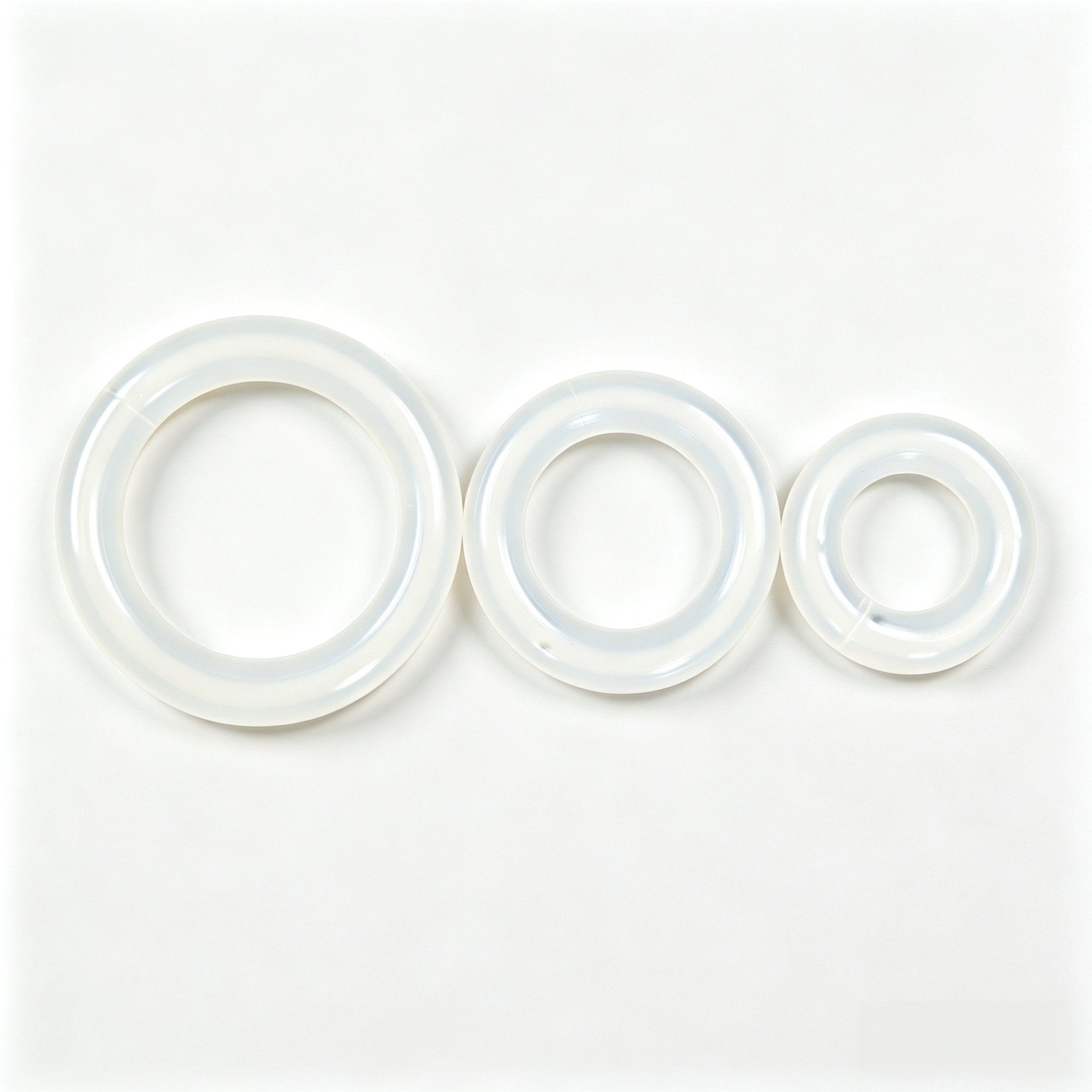

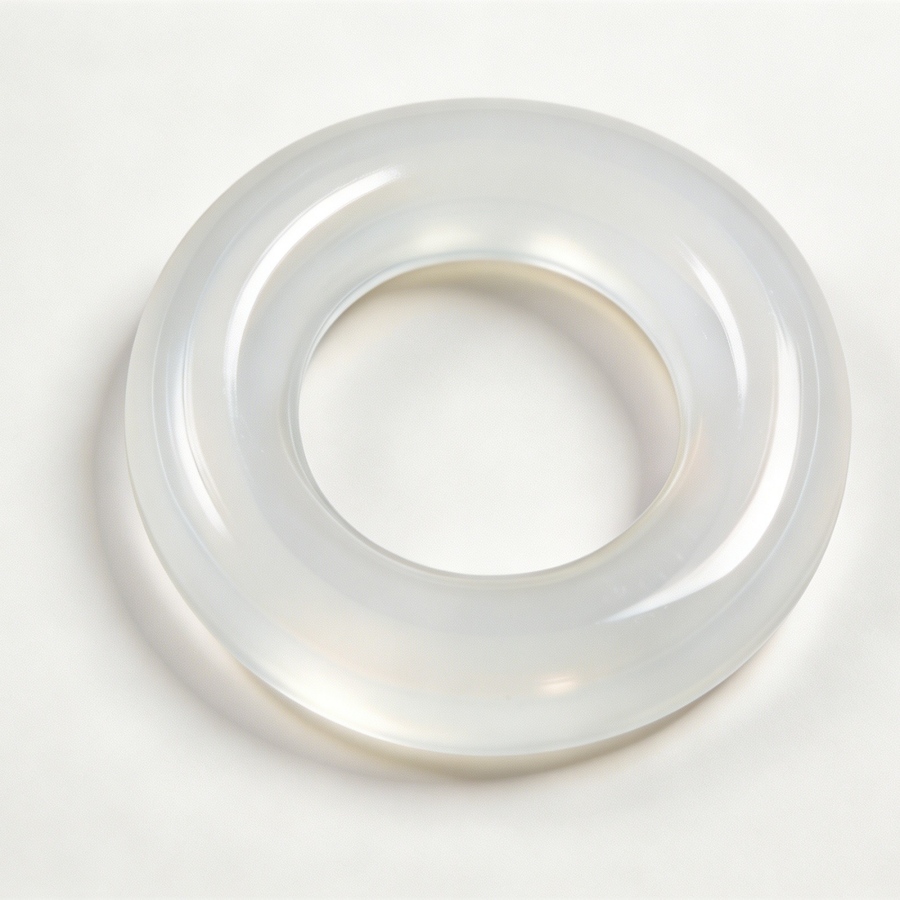

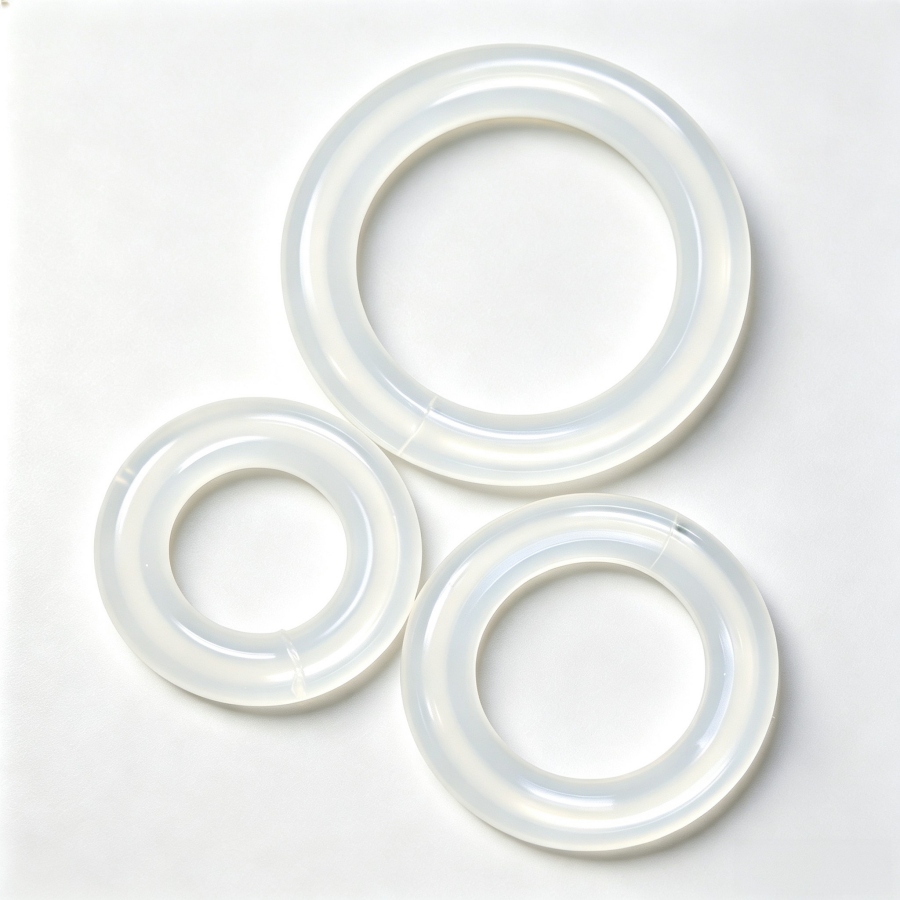

Our Medical Grade Silicone O Ring Gaskets are manufactured from platinum-cured, fumed medical grade silicone, providing a combination of cleanliness, flexibility, dimensional consistency, and reliable sealing performance.

The silicone cord is precisely measured and cut before the two ends are joined to form a continuous silicone O ring gasket. The controlled cutting and bonding process helps achieve consistent dimensions and accurate joint alignment without obvious dislocation

Youtube video :

These medical silicone O ring gaskets are suitable for manufacturers requiring consistent-quality silicone sealing components for medical equipment, medical devices, fluid-handling systems, filtration equipment, and other demanding sealing applications.

Technical Data

Key Advantages of Our Medical Silicone O Ring Gaskets

1. Medical Grade Platinum-Cured Silicone

Our medical grade silicone O rings are manufactured using platinum-cured fumed silicone. This material provides a suitable solution for sealing applications where material quality, cleanliness, and consistent performance are important.

The use of platinum-cured silicone also makes these O ring gaskets suitable for demanding applications where controlled material properties are required.

2. Precise Silicone Cord Cutting

The silicone cord is accurately cut to a specified length of 144.5 ± 0.5 mm.Precise cutting helps maintain consistent O ring dimensions and reduces variation during production, supporting stable assembly and sealing performance.

3. Good O Ring Joining

The cut silicone cord ends are joined using a controlled bonding process to create a continuous O ring gasket.

The joining process is designed to achieve good alignment and avoid obvious joint dislocation, resulting in a more consistent finished silicone O ring gasket.

4. Good bonding joints strength

The bonded silicone O ring gaskets demonstrate large elongation against a 4 kg force, providing reliable joint performance for demanding sealing applications.

This controlled bonding process helps manufacturers achieve more consistent O ring quality compared with uncontrolled manual joining processes.

5. High Production Efficiency

Our production process combines automatic silicone cord cutting with automatic O ring bonding.

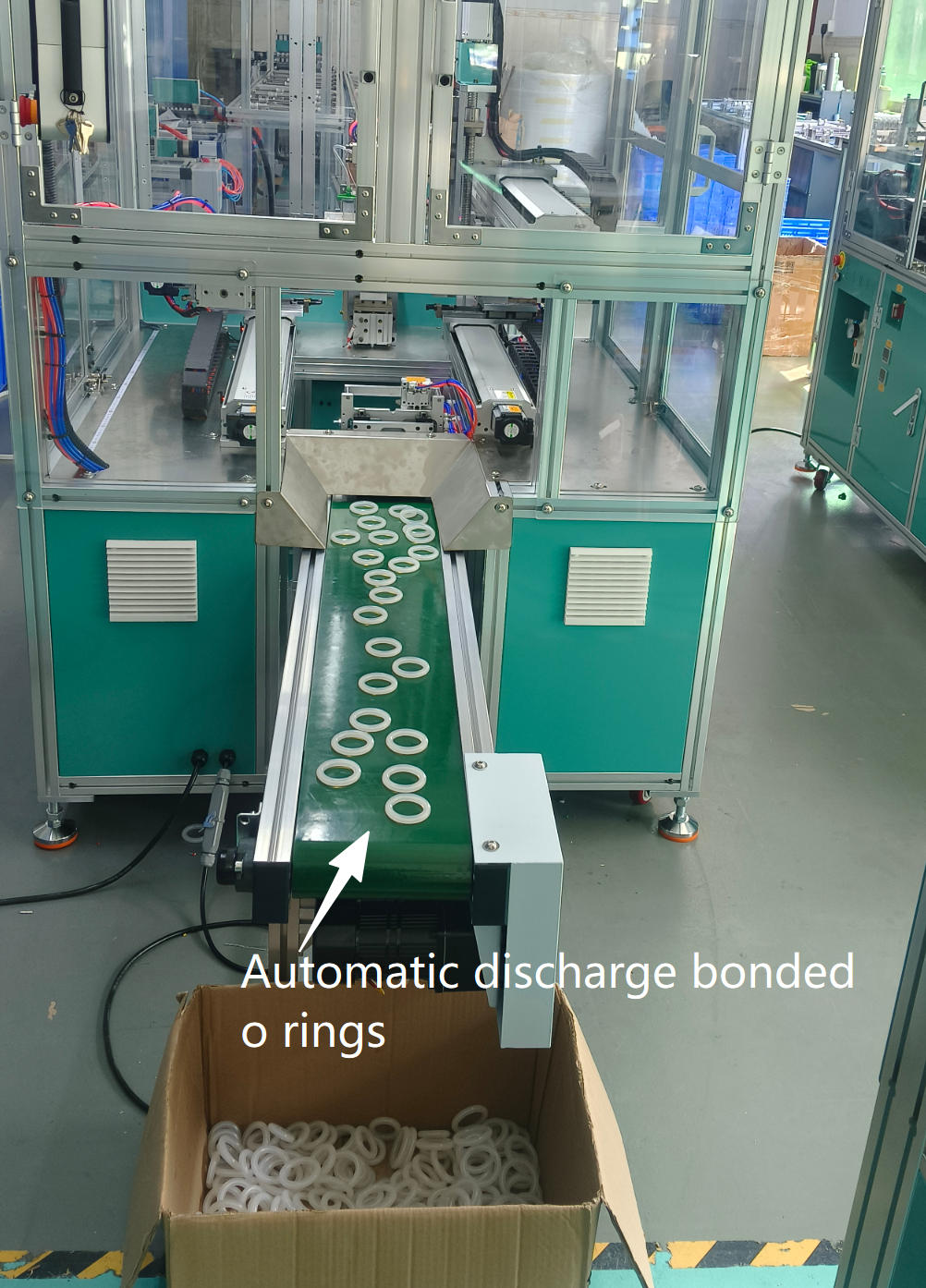

Using a small-size fully automatic silicone O ring cutting and bonding machine . production capacity can reach up to 10,800 medical silicone O ring gaskets per day, based on 10 hours of operation.

This automated production method helps improve dimensional consistency, joint alignment, and manufacturing efficiency.

6. Customized Medical Silicone O Rings

We can discuss customized medical grade silicone O ring gaskets according to customer drawings or specifications.

Customization can include:

1. Silicone cord diameter
2. O ring dimensions
3. Cutting length
4. Dimensional tolerances
5. Packaging requirements
6. Other application-specific requirements

Manufacturing Process

Our manufacturing process combines automatic silicone cord cutting and O ring bonding.

Step 1 – Silicone Cord Preparation

Medical grade platinum-cured fumed silicone cords are loaded onto the feeder shelf of fully automatic cutting and bonding machine

Step 2 – Precise Cutting

The silicone cord are drew to fixed cutting length and cut off by the automatic bonding machine。

Step 3 – End Alignment

The two cut ends are positioned and aligned before bonding.

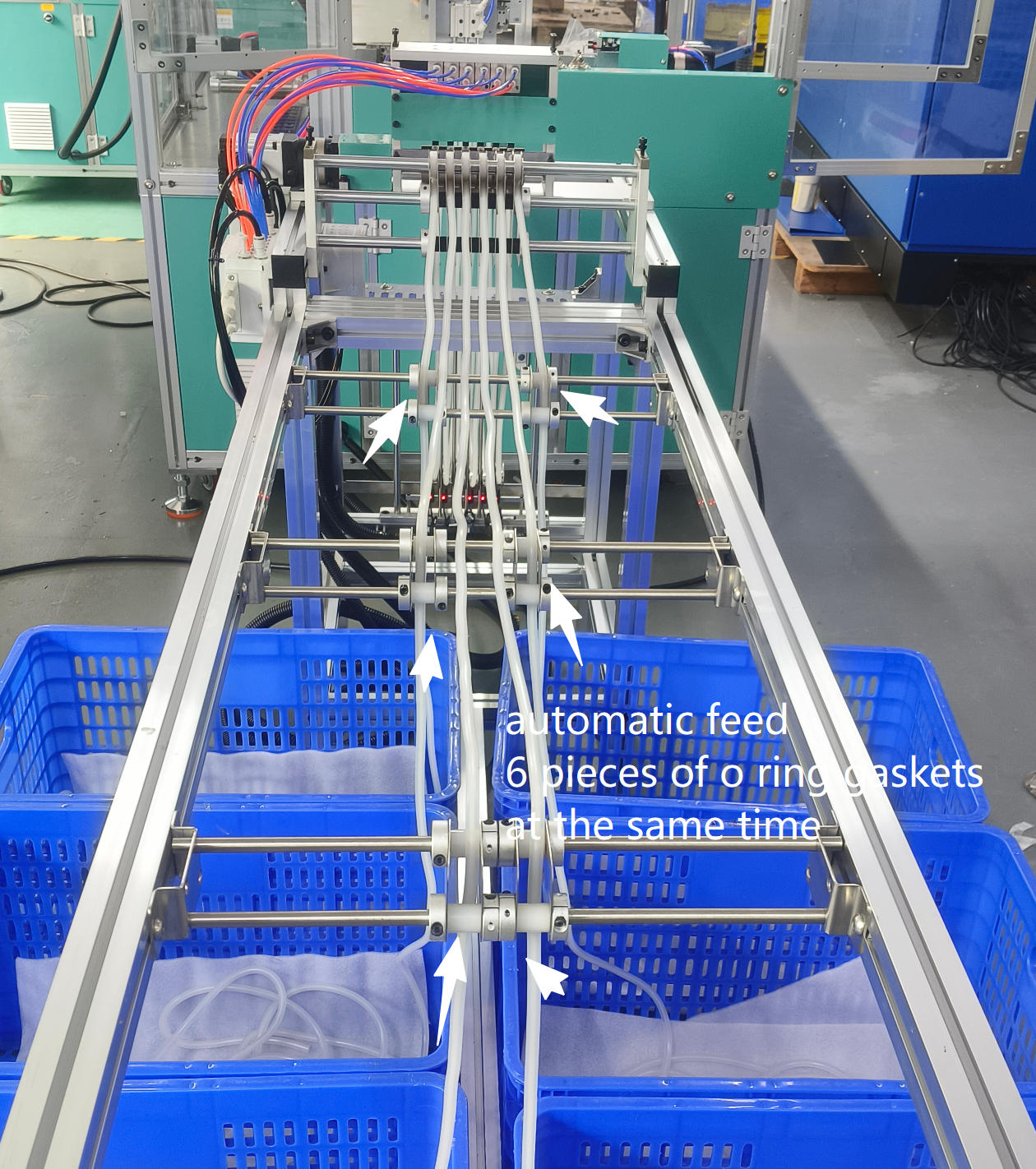

Step 4 – O Ring Bonding

The two silicone cord ends dipped with silicone adhesive and get heated in the hot molds with good joints to form a silicone o ring gasket.

Step 5 – Finished O Ring Inspection

The finished O ring gaskets are checked for dimensions, joint alignment, and overall appearance before packing.

This automated manufacturing process helps reduce variation caused by manual processing while improving production consistency and efficiency.

Applications

Medical grade silicone O ring gaskets can be used as sealing components in equipment and systems where silicone sealing performance, dimensional consistency, and suitable material properties are required.

Typical applications include:

1. Medical equipment
2. Medical devices
3. Fluid-handling equipment
4. Sealing systems
5. Silicone tubing and hose assemblies
6. Filtration equipment
7. Fluid-control equipment
8. Other demanding silicone sealing applications

These applications are consistent with the product scope described in the original documentation.

Packaging

Our standard packaging is:

100 pcs/bag × 3 bags/carton = 300 pcs/carton

Customized packaging is also available according to customer requirements.

Medical Grade Silicone Certification & Compliance

The required certification and compliance documentation may vary depending on the intended application, customer requirements, and destination market.

Common standards requested for medical silicone applications may include:

1. FDA 21 CFR 177.2600
2. USP Class VI
3. ISO 10993

Customers should specify the required standard before order confirmation so that the applicable material certificates, test reports, and compliance documentation can be confirmed.

Material certificates and relevant compliance documentation can be provided according to the required specification.

FAQ – Medical Grade Silicone O Ring Gaskets

1. What silicone material is used for the O ring gaskets?

We use medical grade platinum-cured fumed silicone for manufacturing the silicone O ring gaskets.

2. What medical-grade certificates are required?

The required certification depends on the application and destination market. Common requirements may include FDA 21 CFR 177.2600, USP Class VI, and ISO 10993. Customers should specify their required standard so we can confirm the applicable material documentation.

3. Can you provide material certificates?

Yes. Material certificates and relevant test or compliance documentation can be provided according to the required specification and certification requirements.

4. Is the silicone platinum-cured?

Yes. The product is manufactured using platinum-cured fumed silicone, which is specified in our product documentation.

5. What is the cutting length tolerance?

The documented cutting length is 144.5 ± 0.5 mm, providing consistent dimensions for O ring gasket production.

6. Is the O ring joint properly aligned?

Yes. The joining process produces O ring gaskets with good alignment and without obvious dislocation.

7. Can the silicone O ring gaskets be sterilized?

Silicone can be used in various sterilization applications, but compatibility depends on the sterilization method and specific product requirements. The applicable sterilization conditions should be confirmed before final approval.

8. Can you manufacture customized O ring sizes?

Yes. We can discuss customized silicone cord diameters, O ring dimensions, cutting lengths, tolerances, and other requirements based on customer drawings or specifications.

9. What is the standard packaging?

Standard packing is 100 pcs/bag, 3 bags/carton, 300 pcs/carton. Customized packaging is also available according to customer requirements.

10. What is the production capacity?

Production capacity can reach up to 10,800 pcs/day, based on 10 hours of operation using a small-size fully automatic silicone O ring cutting and bonding machine.
